JMS-50-MES series

JMS-50-MES: OVERVIEW

The JMS-50-MES is a complete dust collection system.

One of its key components is the inclusion of a Variable Speed Drive (VSD) ensuring that it provides maximum air flow while using minimum power, reducing power consumption by up to 40%.

Other key features include:

  • Dirty Air Intake: For contaminated air entry.

  • Filter House: Captures dust particles.

  • Clean Air Box: Ensures clean air discharge.

  • Silencer: Reduces operational noise.

  • Exhaust: Expels filtered air.

  • Dust Discharge System: Collects and disposes of dust.

  • Centrifugal Fan: Powers airflow.

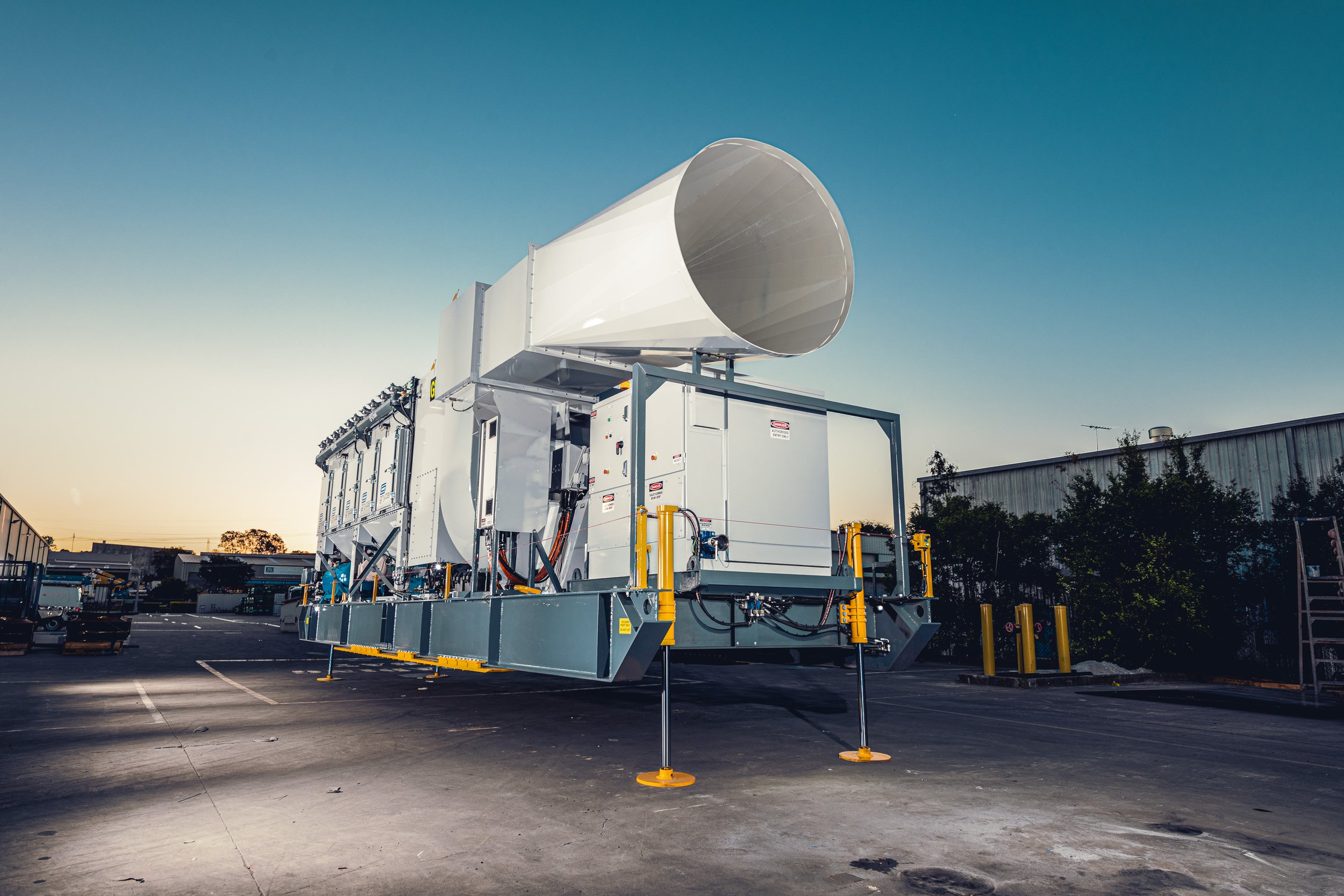

Mounted on a single manoeuvrable drag skid base, handling airflow of 50 m³/s (105,000 CFM) at - 3 kPa.

JMS-50-MES: KEY FEATURES

AIR VOLUME:

50 m3/s (105,000 CFM)
@ -3 kPa

FILTRATION SYSTEM:

Filters: 60
Filter Surface Area: 1,620 m²
Filter MERV Rating: 15

Centrifugal fan:

315 kW Fan Motor

DUST DISCHARGE SYSTEM:

Twin Hydraulic Reversible
Auger with Central Dust Discharge

Optional Extra -
Side Incline Auger
Wet Slurry Discharge

Power:

Electric:
415V, 3-Ph @ 50 Hz
Optional: 1000V Supply

Variable Speed Drive

CONTROL AND MONITORING SYSTEM:

CANbus PLC
Touch Screen Display

AIR INTAKES:

Front: 1 x Ø 1,600 mm

Optional Extra -
Sides: 5 x Ø 508 mm

SAFETY FEATURES:

2 x Emergency Stops

E-Stop Lanyard System

JMS-50 M-SERIES :
MODEL VARIANTS

  • 50 m³/s (105,000 CFM) @-3 kPa

  • Electric: 415V , 3-Phase Supply @ 50Hz
    (Option: 1000V Supply)

    315 kW Centrifugal Fan

  • Drag Skid Mounted

    • Height: 4,087 mm

    • Width: 3,110 mm

    • Length: 13,000 mm

    • Mass: 24,000 kg

  • 50 m³/s (105,000 CFM) @-3 kPa

  • Hybrid System

    Electric: 415V, 3-Phase Supply @ 50Hz
    (Optional - 1000V Supply)

    315 kW Centrifugal Fan

    Diesel: 129 kW - T4F (Euro Stage 5) Volvo Engine

  • Mounted on a manouevrable Track Base

    • Height: 4,206 mm

    • Width: 4,600 mm

    • Length: 11,776 mm

    • Mass: 25,000 kg
