JMS-10-MDT SERIES

JMS-10-MDT: OVERVIEW

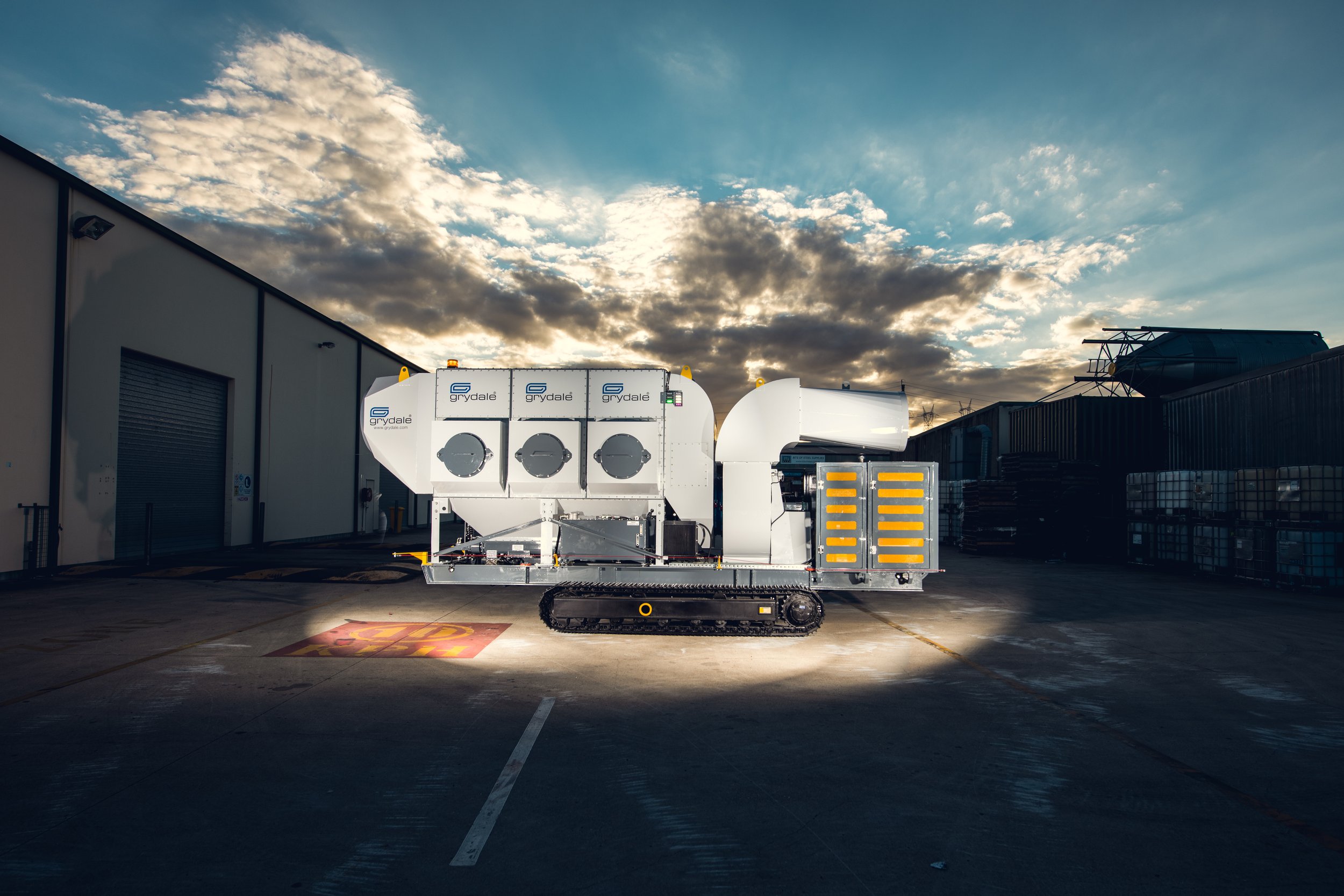

The JMS-10-MDT is a complete dust collection system.

Possessing the ability to move and operate alongside excavation equipment, such as road headers, surface miners, profilers and trenchers, JMS-10-MDT offers full mobility with variable speeds between 2-4 km/h, increasing speed and efficiency of operations.

Other key features include:

  • Dirty Air Intake: For contaminated air entry.

  • Filter House: Captures dust particles.

  • Clean Air Box: Ensures clean air discharge.

  • Silencer: Reduces operational noise.

  • Exhaust: Expels filtered air.

  • Dust Discharge System: Collects and disposes of dust.

  • Centrifugal Fan: Powers airflow.

Mounted on a single manoeuvrable track base, handling airflow of 10 m³/s (20,000 CFM) at -3 kPa.

JMS-10-MDT: KEY FEATURES

AIR VOLUME:

10 m3/s (20,000 CFM)
@ -3kPa

FILTRATION SYSTEM:

Filters: 18
Filter Surface Area: 486 m²
Filter MERV Rating: 15

Centrifugal fan:

Driven by 90 kW
on-board engine

DUST DISCHARGE SYSTEM:

Hydraulic Reversible
Incline Auger
Orientation: Front Only

Power:

Diesel:
90 kW - T4F (Euro Stage 5) Volvo Engine

CONTROL AND MONITORING SYSTEM:

CANbus PLC
Touch Screen Display

AIR INTAKES:

Front: 1 x Ø 800 mm

Optional Extra -
Sides: 3 x Ø 508 mm

SAFETY FEATURES:

2 x Emergency Stops
Emergency Stop Lanyard System
Optional Extra -
Fire Suppression System for Diesel Engine

JMS-10 SERIES :
MODEL VARIANTS

  • 10 m³/s (20,000 CFM) @-3 kPa

  • Electric: 415V , 3-Phase Supply @ 50Hz

    75 kW Centrifugal Fan

  • Drag Skid Mounted

    • Height: 2,970 mm

    • Width: 1,850 mm

    • Length: 7,750 mm

    • Mass: 5,500 kg

  • 10 m³/s (20,000 CFM) @-3 kPa

  • Diesel: 90 kW - T4F (Euro Stage 5) Volvo Engine

  • Mounted on a single manoeuvrable track base

    • Height: 3,367 mm

    • Width: 2,540 mm

    • Length: 7,430 mm

    • Mass: 10,000 kg
