XP RANGE
XP RANGE

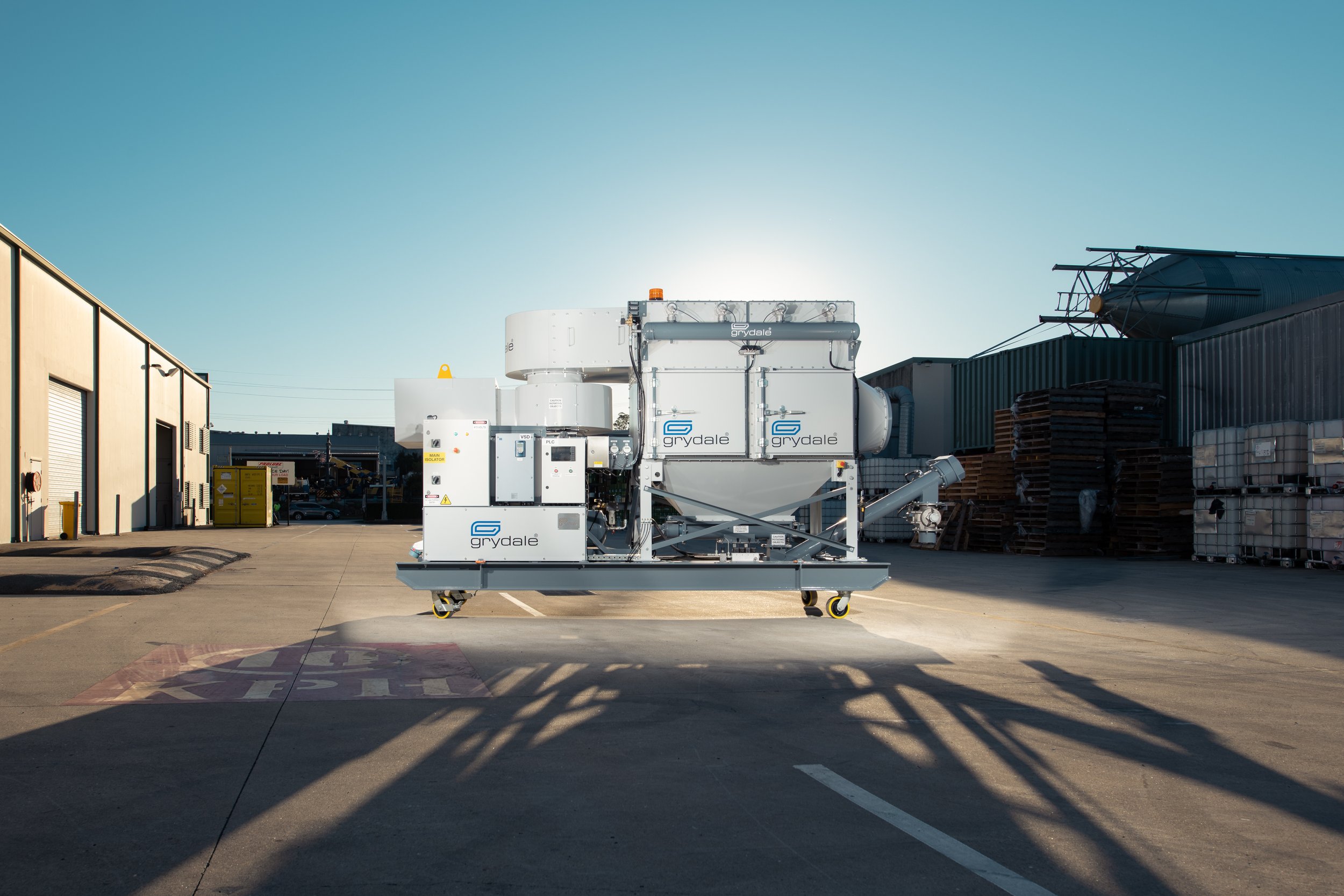

The XP Range of mobile dust collectors is designed for cross-passage construction with a compact, relocatable footprint. Key features include:
Dirty Air Intake: For contaminated air entry.
Filter House: Captures dust particles.
Clean Air Box: Ensures clean air discharge.
Silencer: Reduces operational noise.
Exhaust: Expels filtered air.
Dust Discharge System: Collects and disposes of dust.
Centrifugal Fan: Powers airflow.
Mounted on a single maneuverable base, handling airflow of 6 m³/s (12,000 CFM) to 10 m³/s (20,000 CFM) at -2.5 kPa.
XP RANGE :
MODEL VARIANTS
-
6 m³/s (12,000 CFM) @-2.5 kPa
-
Electric: 415V , 3-Phase Supply @ 50Hz
37 kW Centrifugal Fan
-
Drag Skid Mounted
Optional: Castor Wheels
-
Height: 2,770 mm
Width: 1,985 mm
Length: 5,690 mm
Mass: 4,500 kg
-
10 m³/s (20,000 CFM) @-3 kPa
-
Electric: 415V , 3-Phase Supply @ 50Hz
55 kW Centrifugal Fan
-
Drag Skid Mounted
Optional: Castor Wheels
-
Height: 2,770 mm
Width: 1,833 mm
Length: 5,050 mm
Mass: 5,500 kg
