XP-1 SERIES
XP-1: OVERVIEW

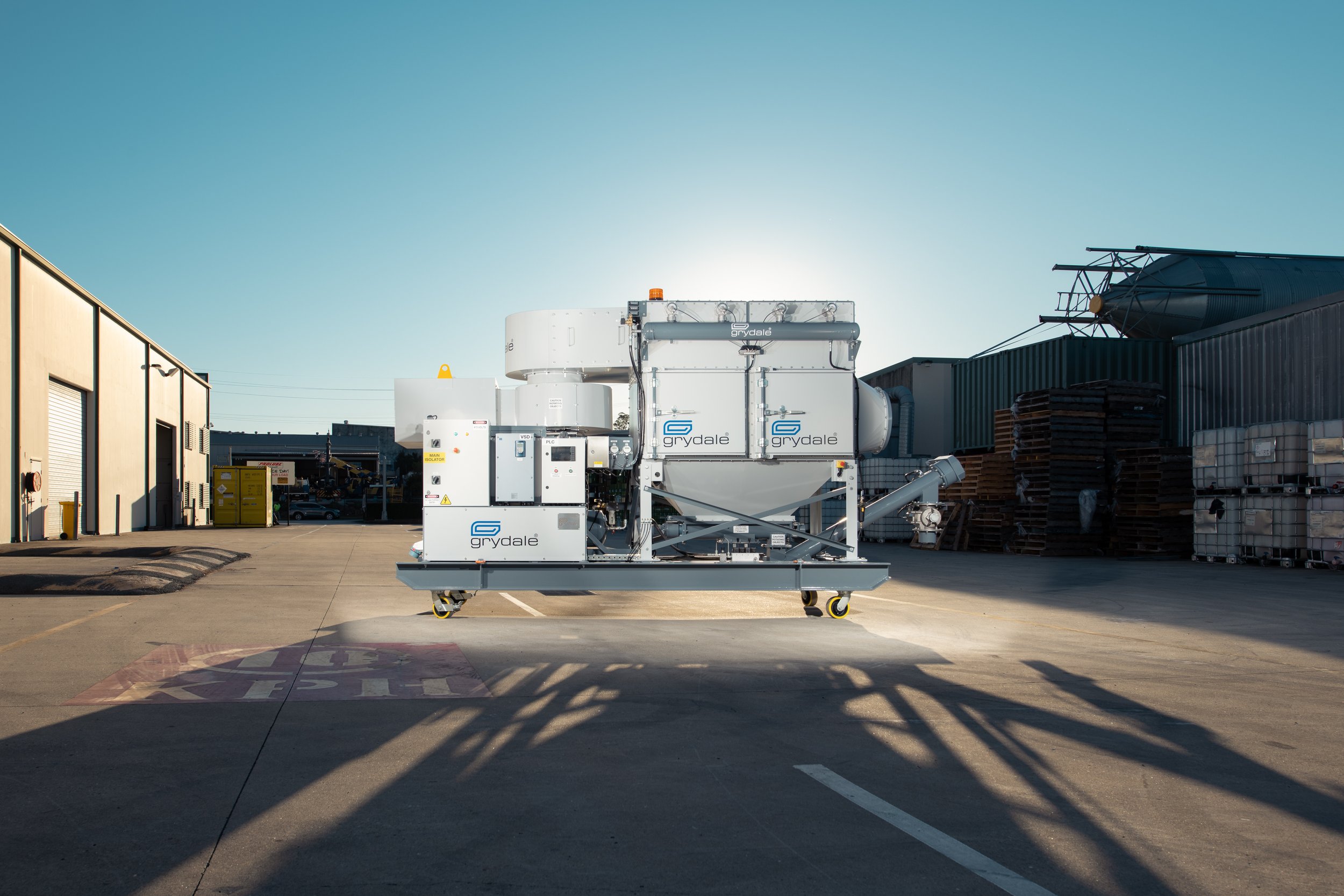

The XP Range of mobile dust collectors is designed for cross-passage construction with a compact, relocatable footprint. Key features include:
Dirty Air Intake: For contaminated air entry.
Filter House: Captures dust particles.
Clean Air Box: Ensures clean air discharge.
Silencer: Reduces operational noise.
Exhaust: Expels filtered air.
Dust Discharge System: Collects and disposes of dust.
Centrifugal Fan: Powers airflow.
Mounted on a single maneuverable base, handling airflow of 6 m³/s (12,000 CFM) at -2.5 kPa.
XP-1: KEY FEATURES
AIR VOLUME:
6 m3/s (12,000 CFM)
@ -2.5kPa
FILTRATION SYSTEM:
Filters: 12
Filter Surface Area: 252 m²
Filter MERV Rating: 15
Centrifugal fan:
37 kW Fan Motor
DUST DISCHARGE SYSTEM:
Hydraulic Reversible
Incline Auger
Auger Orientation:
Front Only
Power:
Electric:
415V, 3-Ph @ 50 Hz
Variable Speed Drive
CONTROL AND MONITORING SYSTEM:
CANbus PLC
Touch Screen Display
AIR INTAKES:
Single: 1 x 600mm
SAFETY FEATURES:
1 x Emergency Stop
XP RANGE : MODEL VARIANTS
XP-1
-
6 m³/s (12,000 CFM) @-2.5 kPa
-
Electric:415V , 3-Phase Supply @ 50Hz
37 kW Centrifugal Fan
-
Drag Skid Mounted
Optional Configuration: Castor-Wheels
-
Height: 2,770 mm
Width: 1,985 mm
Length: 5,690 mm
Mass: 4,500 kg
-
10 m³/s (20,000 CFM) @-2.5 kPa
-
Electric:415V , 3-Phase Supply @ 50Hz
55 kW Centrifugal Fan
-
Drag Skid Mounted
Optional Configuration: Castor-Wheels
-
Height: 2,770 mm
Width: 1,833 mm
Length: 5,050 mm
Mass: 5,500 kg
XP-2
