JMS-30-MHT SERIES

JMS-30-Mht: OVERVIEW

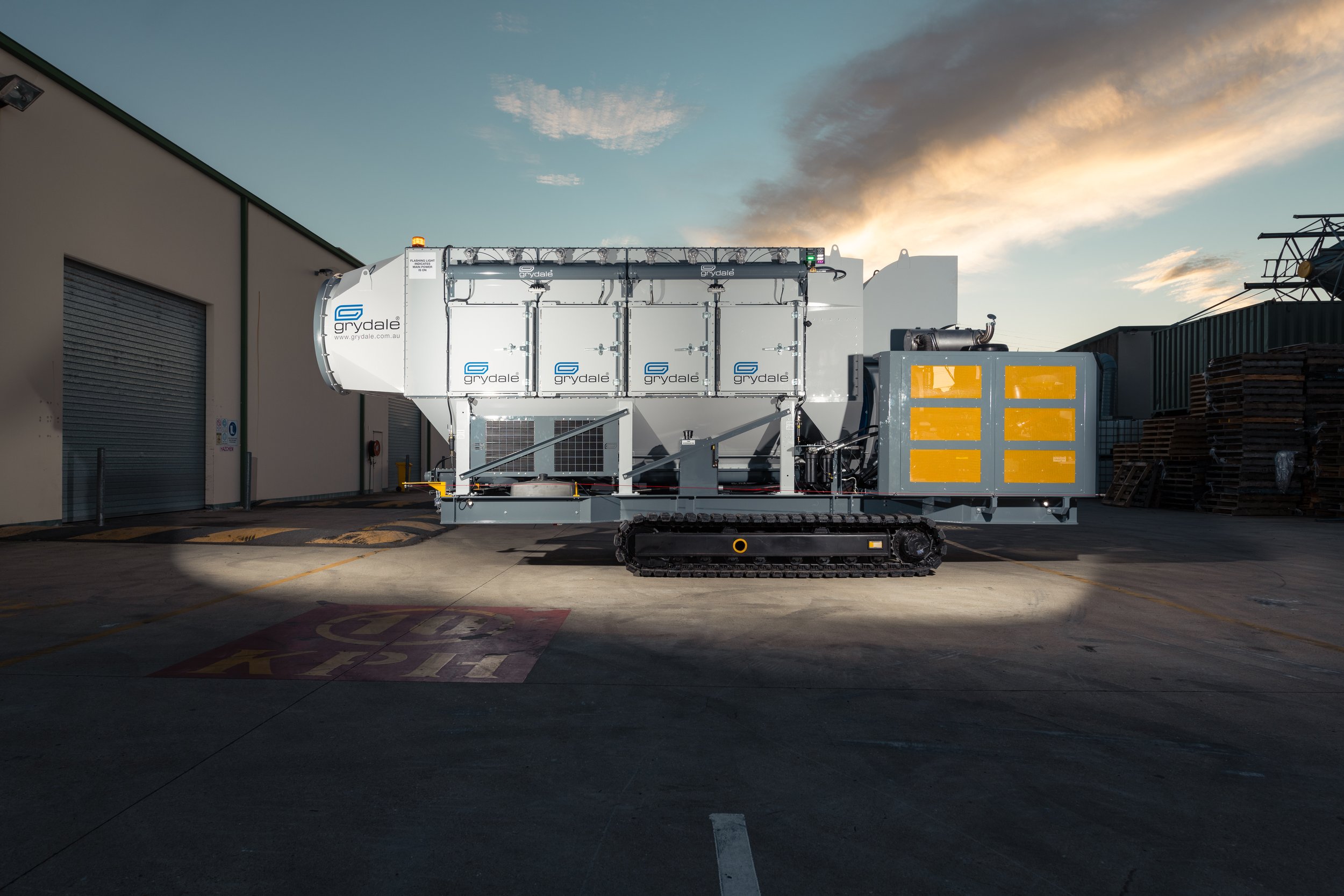

The JMS-30-MHT is a complete dust collection system.

Our Hybrid units utilise an electric motor to power the centrifugal fan, hydraulic rotary augers and valves, working in tandem with an on-board diesel engine driving the motorized tracks.

One of its key components is the inclusion of a Variable Speed Drive (VSD) ensuring that it provides maximum air flow while using minimum power, reducing power consumption by up to 40%.

Key features include:

  • Dirty Air Intake: For contaminated air entry.

  • Filter House: Captures dust particles.

  • Clean Air Box: Ensures clean air discharge.

  • Silencer: Reduces operational noise.

  • Exhaust: Expels filtered air.

  • Dust Discharge System: Collects and disposes of dust.

  • Centrifugal Fan: Powers airflow.

Mounted on a single manoeuvrable track-mounted skid base, handling airflow of 30 m³/s (30,000 CFM) at - 3 kPa.

JMS-30-MHT: KEY FEATURES

AIR VOLUME:

30 m3/s (60,000 CFM)
@ -3 kPa

FILTRATION SYSTEM:

Filters: 60
Filter Surface Area: 1,620 m²
Filter MERV Rating: 15

Centrifugal fan:

185 kW Fan Motor

DUST DISCHARGE SYSTEM:

Twin Hydraulic Reversible
Auger with Central Dust Discharge

Optional Extra -
Front Facing Incline Auger
Wet Slurry Discharge

Power:

Hybrid System

Electric:
415V, 3-Ph @ 50 Hz

Variable Speed Drive

Diesel:
36.5 kW - T4F (Euro Stage 5)
Volvo Engine

CONTROL AND MONITORING SYSTEM:

CANbus PLC
Touch Screen Display

AIR INTAKES:

Front: 1 x Ø 1,372 mm

Optional Extra -
Sides: 4 x Ø 508 mm

SAFETY FEATURES:

1 x Emergency Stop

E-Stop Lanyard System

Real Tme Emissions Monitoring

JMS-30 M-SERIES :
MODEL VARIANTS

  • 30 m³/s (60,000 CFM) @-3 kPa

  • Electric: 415V , 3-Phase Supply @ 50Hz

    185 kW Centrifugal Fan

  • Drag Skid Mounted

    • Height: 3,680 mm

    • Width: 2,500 mm

    • Length: 9,660 mm

    • Mass: 13,000 kg

  • 30 m³/s (60,000 CFM) @-2.5 kPa

  • Diesel: 209 kW - T4F (Euro Stage 5) Volvo Engine

  • Mounted on a manoeuvrable Track Base

    • Height: 3,695 mm

    • Width: 2,880 mm

    • Length: 9,893 mm

    • Mass: 13,500 kg

  • 30 m³/s (60,000 CFM) @-3 kPa

  • Electric: 415V , 3-Phase Supply @ 50Hz

    185 kW Centrifugal Fan

    Diesel: 36.5 kW - T4F (Euro Stage 5) Volvo Engine

  • Mounted on a manoeuvrable Track Base

    • Height: 3,940 mm

    • Width: 2,855 mm

    • Length: 9,720 mm

    • Mass: 14,000 kg
