JMS-20-MDT SERIES

JMS-20-MDT: OVERVIEW

The JMS-20-MDT is a complete dust collection system.

Possessing the ability to move and operate alongside excavation equipment, such as road headers, surface miners, profilers and trenchers. JMS-20-MDT offers full mobility with variable speeds between 2-4 km/h, increasing speed and efficiency of operations.

Other key features include:

  • Dirty Air Intake: For contaminated air entry.

  • Filter House: Captures dust particles.

  • Clean Air Box: Ensures clean air discharge.

  • Silencer: Reduces operational noise.

  • Exhaust: Expels filtered air.

  • Dust Discharge System: Collects and disposes of dust.

  • Centrifugal Fan: Powers airflow.

Mounted on a single manoeuvrable track base, handling airflow of 20 m³/s (40,000 CFM) at -2.5 kPa.

JMS-20-MDT: KEY FEATURES

AIR VOLUME:

20 m3/s (40,000 CFM)
@ -2.5kPa

FILTRATION SYSTEM:

Filters: 24
Filter Surface Area: 648 m²
Filter MERV Rating: 15

Centrifugal fan:

Driven by 168 kW
on-board engine

DUST DISCHARGE SYSTEM:

Hydraulic Reversible
Incline Auger
Orientation: Front Only

Power:

Diesel:
90 kW - T4F (Euro Stage 5) Volvo Engine

CONTROL AND MONITORING SYSTEM:

CANbus PLC
Touch Screen Display

AIR INTAKES:

Front: 1 x Ø 1,122 mm

Optional Extra -
Sides: 3 x Ø 508 mm

SAFETY FEATURES:

2 x Emergency Stops
E-Stop Lanyard System

Optional Extra -
Fire Suppression System for Diesel Engine

JMS-20 SERIES :
MODEL VARIANTS

  • 20 m³/s (40,000 CFM) @-2.5 kPa

  • Electric: 415V , 3-Phase Supply @ 50Hz

    110 kW Centrifugal Fan

  • Drag Skid Mounted

    • Height: 3,367 mm

    • Width: 2,577 mm

    • Length: 7,888 mm

    • Mass: 10,000 kg

  • 20 m³/s (40,000 CFM) @-2.5 kPa

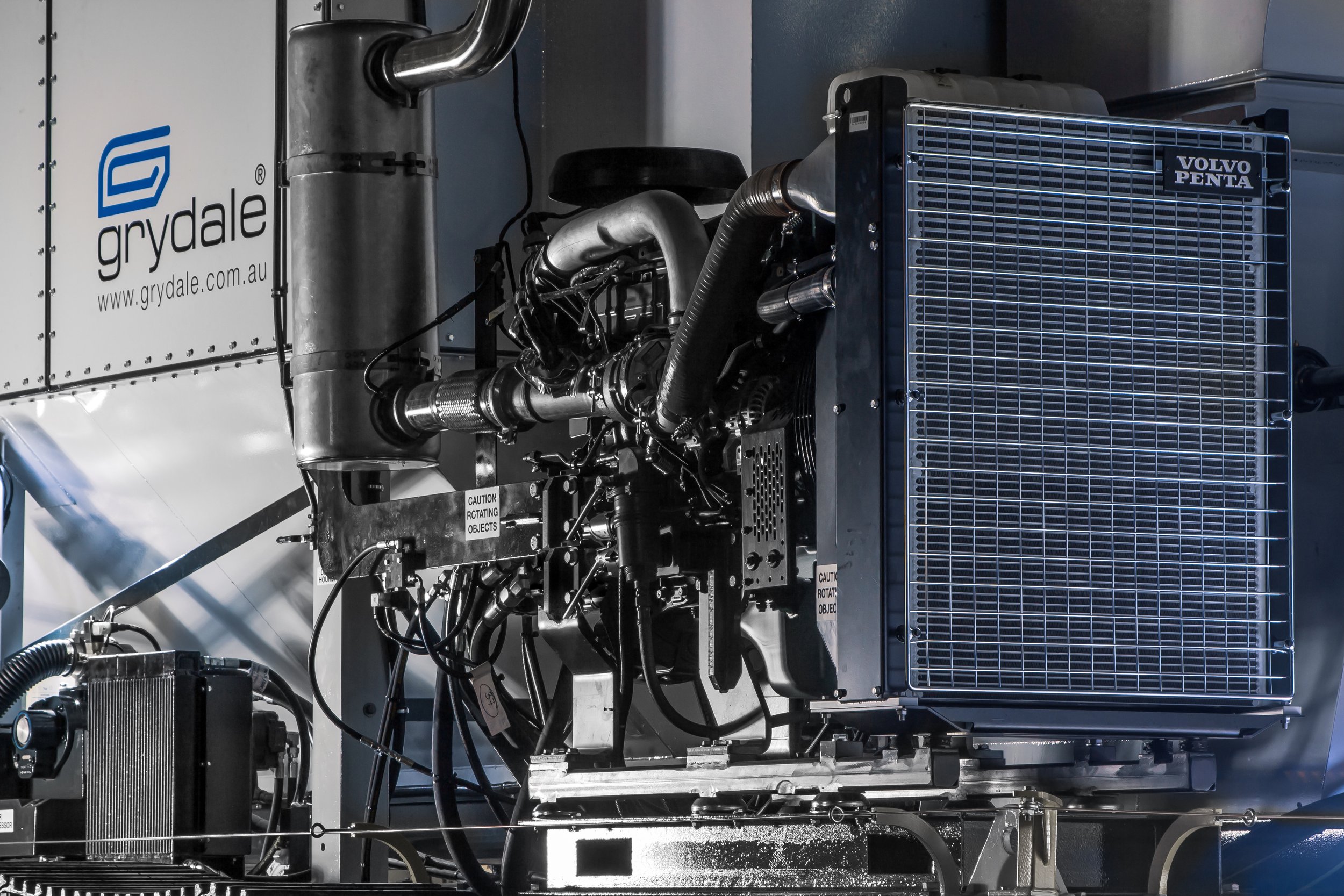

  • Diesel: 168 kW - T4F (Euro Stage 5) Volvo Engine

  • Mounted on a manoeuvrable Track Base

    • Height: 3,839 mm

    • Width: 2,861 mm

    • Length: 11,700 mm

    • Mass: 11,700 kg
